Grinder Machine/Equipment

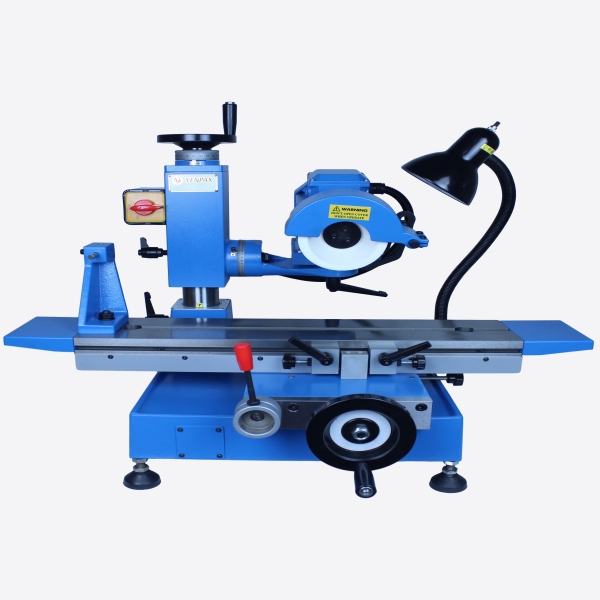

GD-600 universaltool grinding machine

Product features ：
The machine is made of high precision linear rolling guide,the bed is balanced,theoperation is light.With the various accessories can be grinding molding tool,millingcutter,R type milling cutter,reamer,turning,R type tool,rolling cutter,drill,tap,carvingKnife,heavy cutting tools,chamfering cutter,cutter, circular cylindrical,planar groove,forming surface.

Technical Data：

1.工作台左右行程:270mm

working table or so stroke:270mm

2.工作台前后行程:170mm

front and rear travel: 170mm

3.工作台面积:130mmx600mm

working table area:130mmx600mm

4.砂轮头升降距离:140mm

wheel head lift distance:140mm

5.砂轮头旋转角度:360°wheel head rotation angle: 360

6.砂轮尺寸:125x50x32mm

wheel size:125 x50 32mm7.砂轮转速:2800RPMwheelspeed: 2800 RPM

8.马达压力、马力:550W220V/380

Vmotor pressure,horsepower:220V/380V 550W

9.毛重:145kgs

gross weight: 145kgs

10.包装尺寸:76x65x65cm

packing size:76x65x65cm
