gun drill deep hole drilling tool grinder

Product features

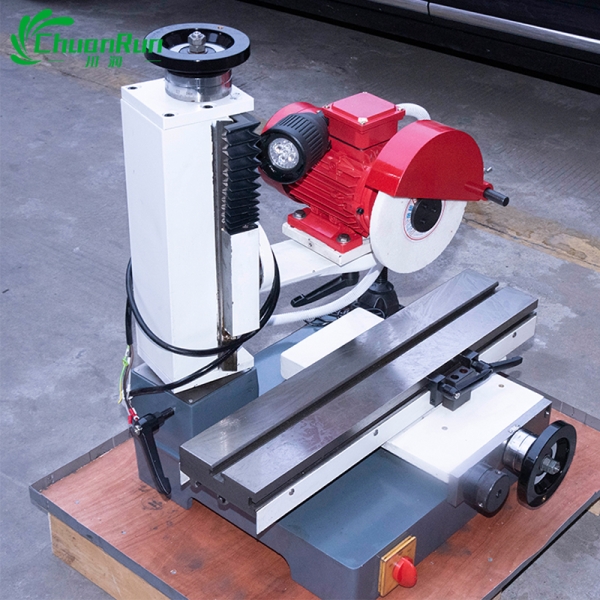

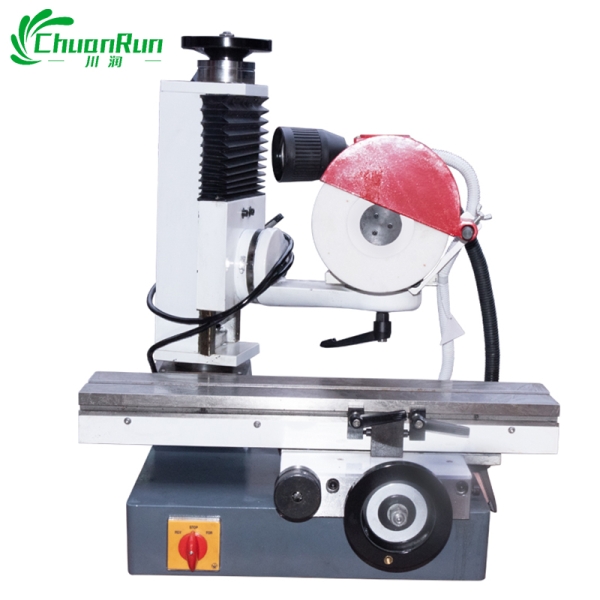

QD-600 type standard gun dril hole tool grinder with precision rolling guide, high speed motorstable movement, small friction,The grinding wheel machine can rotate in horizontal and verticalplane, expandingthe use range of machine tool.With the sharpening grinding fixture, all kinds ofgun drill accurately.The special toolfor the grinding of the gun drill jig with the5oQ gun;its compactstructure, convenientinstallation,easy adjustment processingtime(a clamping can complete all theangle grinding);High strength and accuracy of the drilling blade,5- of 32 (range of grinding can bechanged phi 3-38);This machineis suitable for deep hole driling and driling. it has the advantagesofbeautifulappearance,small size,convenienthandling,stable operation,especially lightandflexible operation;Are sold at home and abroad!

技術参数:Technical Data

1.工作台尺寸:130X680mm

working table size:130X680mm

2.工作台左右行程:300mm
workikng table or so stroe: 300mm

3.工作台前后行程:170mm

front and reartravel: 170mm

4.砂轮垂直升降距离:140mm
wheel vertical lift distance: 140mm

5.砂轮回转角度:360°
wheel rotation angle: 360

6.磨头转速:3600RPM

head speed: 3600RPM

7.电机:550W 220V/380V

motor:220V/380V 550W

8.头架主轴锥孔:莫氏3# MT3#

3# MT: Morse taper spindle 3#

9.砂轮尺寸:125x50x32mm

wheel size: 125 x 50 32mm

10.毛重:185kg

gross weight: 185kg

11.包装尺寸:76x74x73cm

packing size:76x74x73cm
